Diesel Generator 9–20 kVA

Attachment

Download

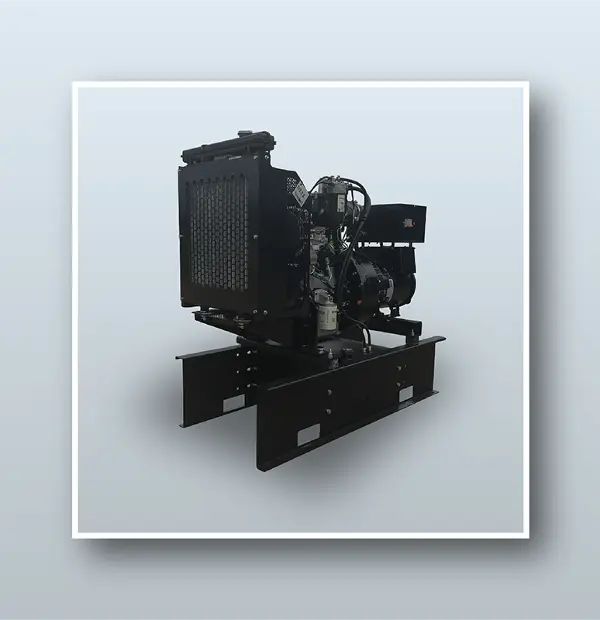

Edison Power supplies 9–20 kVA Perkins diesel generators in Bangladesh, available in four models: WP9, WP13, WP15, and WP20. These compact, fuel-efficient units are trusted by homes, small businesses, and telecom operators. Each generator is UK-assembled under ISO 9001 certification, equipped with Perkins engines, Stamford alternators, and Deep Sea 7320 MKII controllers. All models undergo pre-delivery testing, include wiring diagrams, and are supported with installation, AMC, and 24/7 nationwide service.

Shared Features

Engine: Perkins (UK) – naturally aspirated, liquid-cooled, mechanical governor.
Alternator: Alternator - Stamford and Leroy Somer with Mecc Alte options available
Controller: Deep Sea, auto-start, alarms, ATS-ready, remote monitoring capable.
Build Quality: UK-assembled in Welland Power’s ISO 9001 certified factory.
Canopy: Made from mild steel with zinc coating & powder finish, designed for tropical climates.
Noise Levels: Compliant with EU Stage 2 standards (62–63 dB @ 7m).
Maintenance: Easy service access, long oil change intervals, global Perkins parts availability.

Overview

Diesel Generator 9–20 kVA in Bangladesh

Variant Comparison – WP9, WP13, WP15, WP20

Model	Prime (kVA)	Standby (kVA)	Fuel Use @75% (L/hr)	Size (mm)	Weight (kg)	Best Use Case
WP9	8.5	9.4	000000002.000000000	1200×758×1235	409	Small homes, shops
WP13	12.5	13.8	2.79	1600×758×1235	458	Homes with AC, telecom
WP15	14.4	15.8	3.11	1680×758×1235	468	Small businesses, workshops
WP20	19.6	21.6	4.0	1800×758×1235	588	Offices, telecom, rural clinics

Applications

WP9 → Best for small homes, shops, backup for light loads.
WP13 → Ideal for residential houses with ACs, telecom towers.
WP15 → Chosen by small offices, rural businesses, workshops.
WP20 → Reliable power for commercial offices, healthcare clinics, and telecom stations.

Perkins Engine Value

All engines are liquid-cooled, mechanical governor, naturally aspirated, with long service intervals and global parts availability. Ideal for Bangladesh’s tropical conditions, they deliver low fuel use, stable performance, and high durability.

WP9: 403A-11G1 → 3 cylinders, 1.13L displacement
WP13: 403A-15G1 → 3 cylinders, 1.49L displacement
WP15: 403A-15G2 → 3 cylinders, 1.49L displacement
WP20: 404A-22G → 4 cylinders, 2.22L displacement

Alternator & Control Panel

Alternator: Stamford SOL1 series (standard) → 3-phase, AVR AS540, <2.5% THD, insulation Class H, >81% efficiency. Alternative Mecc Alte options also available.

Control Panel :

Auto start/stop & monitoring
Protection for low oil pressure, coolant, overloads
Full alarm system for faults
Remote monitoring capable
Compatible with ATS & synchronization panels

Canopy & Build Quality

Built with 2mm zinc-coated mild steel, powder-coated finish.
Designed for Bangladesh’s tropical climate.
Noise reduction to 62–63 dB at 7m.
Easy access panels for service & maintenance.
Large removable doors for durability and ease of repair.

FAQs

Q1. What is the price of a 10 kW generator in Bangladesh?
A: Edison Power offers Perkins-powered 10 kW (≈13 kVA) diesel generators with competitive pricing, installation, and AMC support.

Q2. Which generator is best for homes?
A: WP9 or WP13 models are ideal for residential backup.

Q3. Can WP20 power a telecom station or clinic?
A: Yes – WP20 is widely chosen for telecom towers and rural healthcare facilities.

Q4. Do you offer silent canopy options?
A: Yes – all models can be delivered as soundproof/silent generators.

Q5. Do you provide installation & AMC?
A: Yes – Edison Power ensures installation, commissioning, AMC contracts, and 24/7 service.

Get Your 9–20 kVA Perkins Generator Today

✔ Models: WP9, WP13, WP15, WP20
✔ UK-assembled, ISO 9001 certified
✔ Silent canopy, installation & 24/7 service

📞 Hotline: +880 1755 626006 | ✉ power_info@edison-bd.com
