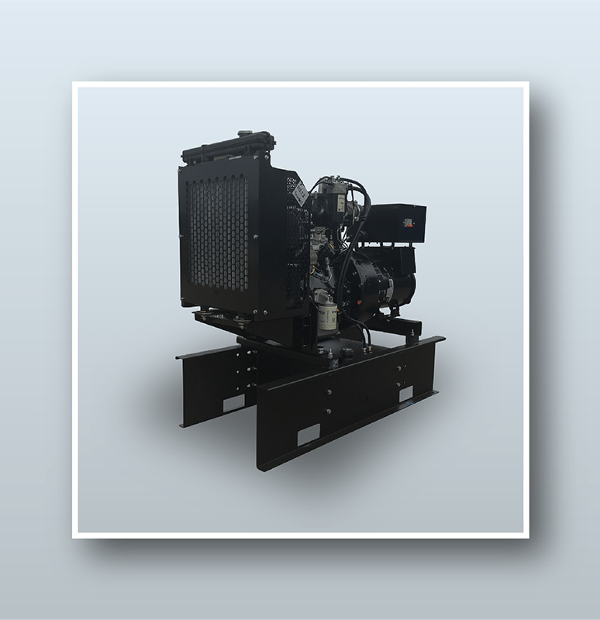

30100 kVA Perkins diesel generators in Bangladesh

Diesel Generator 30–100 kVA

Attachment

Download

Edison Power delivers 30–100 kVA Perkins diesel generators in Bangladesh, trusted by hospitals, universities, banks, garment factories, and industries. This range covers WP30, WP45, WP60, WP65, WP80, and WP100C models, balancing fuel efficiency with industrial-grade durability. All generators are UK-assembled under ISO 9001, built with Perkins engines, Stamford alternators, ABB breakers, and Deep Sea 7320 MKII controllers. Silent canopy options, synchronization, and 24/7 AMC support make them reliable for prime and standby use.

Shared Features Across All Models

  • Perkins engines – naturally aspirated or turbocharged for durability and efficiency.
  • Alternators Stamford and Leroy Somer with Mecc Alte options available
  • Deep Sea controllers – advanced alarms, monitoring, ATS-ready.
  • UK assembly in Welland Power’s ISO 9001 certified facility.
  • Silent canopy options – EU compliant with 68–71 dB @ 7m.
  • Integrated base fuel tanks with long runtime.
  • Pre-delivery testing & inspection reports.
  • AMC contracts & spare parts availability in Bangladesh.

Overview

Diesel Generator 30–100 kVA in Bangladesh


Power & Engine Summary

Model

Prime (kVA)

Standby (kVA)

Engine (Perkins)

Cylinders

Aspiration

WP30

30

33

1103A-33G

3

Naturally Aspirated

WP45

45

50

1103A-33TG1

3

Turbocharged

WP60

60

66

1103A-33TG2

3

Turbocharged

WP65

65

71

1104A-44TG1

4

Turbocharged

WP80

80

88

1104A-44TG2

4

Turbocharged

WP100C

100

110

1104C-44TAG2

4

Turbocharged (Electronic)


Performance & Build

Model

Fuel Use @75% (L/hr)

Tank (L)

Size (L×W×H mm)

Weight (kg)

Best Use Case

WP30

6.1

125

1500×702×1360

543

Small factories, offices

WP45

9.3

125

1600×702×1380

770

Schools, banks, offices

WP60

11.5

125

1700×758×1380

849

Clinics, warehouses

WP65

12.0

125

1780×758×1380

929

Hospitals, commercial

WP80

15.0

125

1850×758×1380

947

Universities, factories

WP100C

19.0

125/260

1980×758×1397

1069

Hospitals, data centers


Perkins Engine Insights

  • WP30–WP60 (3-cylinder models) → compact design, low fuel use, ideal for mid-sized commercial operations.\
  • WP65–WP100C (4-cylinder models) → higher torque, better load handling, suited for hospitals, universities, and industries.
  • Turbocharging improves efficiency & reliability for heavy loads.
  • Fuel consumption ranges from 6.1 L/hr (WP30) to 19 L/hr (WP100C) at 75% load, ensuring lower operating costs.

Alternator Overview

  • Standard: Stamford alternators with AVR AS540, <2.5% THD.
  • Efficiency: >90%, insulation Class H.
  • Alternatives: Mecc Alte (ECP series) and Leroy Somer (TAL series).
  • 3-phase, self-excited, brushless design → stable output even under variable loads.


Control Panel

  • Auto start/stop, alarms, and monitoring.
  • Protects against low oil, high coolant temp, overload, over/under voltage, frequency issues.
  • ATS-ready → automatic switchover during power failure.
  • Remote monitoring compatibility.
  • Event log memory for maintenance and troubleshooting.


Canopy & Build Quality

  • Fabricated in UK → ISO 9001 certified factory.
  • 2mm zinc-coated mild steel, powder-coated finish.
  • Tropical radiator for Bangladesh climate.
  • Sound levels: 68–71 dB at 7m (EU compliant).
  • Fuel tanks: 125L standard, up to 260L for extended runtime (WP100C).
  • Large removable access doors → easier servicing.


Applications

  • WP30–WP45 → schools, banks, retail complexes, smaller industries.
  • WP60–WP65 → hospitals, clinics, commercial complexes.
  • WP80–WP100C → garment factories, universities, IT/data centers, mid-size industries.


Certifications & Trust Signals

  • ISO 9001 certified UK assembly.
  • CE certification & EU Stage 2 noise compliance.
  • Welland Power QR system → scan for manuals, test results, warranty.
  • The Queen’s Award for Enterprise: International Trade winner.


FAQs


Q1. What is the price of a 100 kVA diesel generator in Bangladesh?
 A: Edison Power provides Perkins-powered 100 kVA generators with installation, commissioning, and AMC support.

Q2. Which model is best for hospitals?
 A: WP65 or WP100C → both are widely used in healthcare for reliable power.

Q3. Do you offer silent canopy options?
 A: Yes – all models are available with soundproof enclosures.

Q4. Can these be synchronized for larger operations?
 A: Yes – compatible with synchronization panels and ATS systems.

Q5. Do you provide AMC?
 A: Yes – Edison Power offers Annual Maintenance Contracts (AMC) and 24/7 nationwide service.

Call to Action


Get Your Perkins 30–100 kVA Generator in Bangladesh
 ✔ Choose from WP30, WP45, WP60, WP65, WP80, WP100C
 ✔ UK-assembled, ISO 9001 certified
 ✔ Silent canopy, installation & 24/7 AMC

📞 Hotline: +880 1755 626006 | ✉ power_info@edison-bd.com



Media Gallery

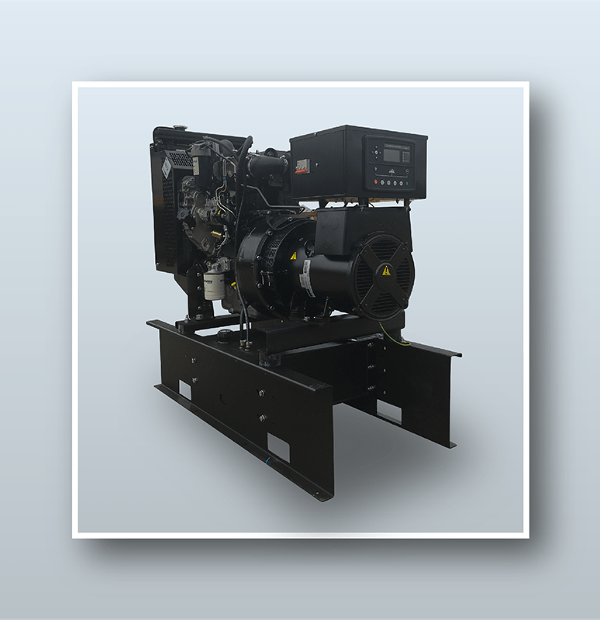

1726553557850-generator-30-100-2png
