BBT Lightech Lighting Busbar System in Bangladesh

What Is the BBT Lightech System?

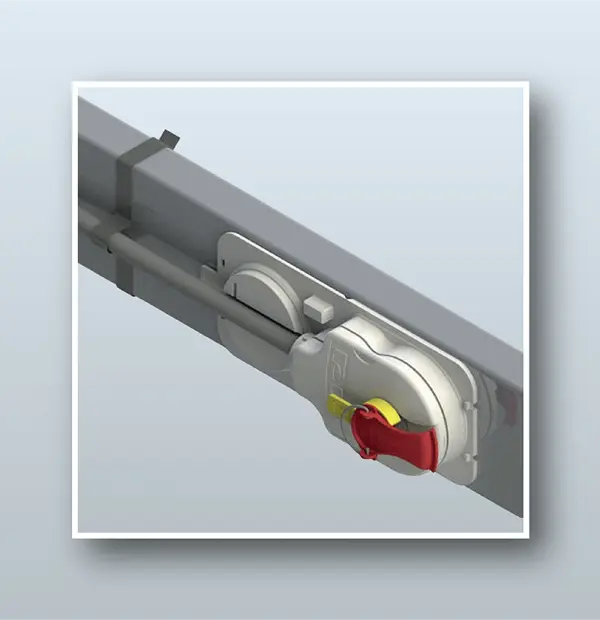

BBT Lightech is a low-power lighting busbar system which is designed for supplying nominal currents of 25A and 40A. This system is suitable for commercial spaces where flexibility and quick adaptation are necessary.

The system is available with:

• 2, 4, 6, 8, or 12 conductors
• Single or double casing options

This system adapts to different lighting layouts and control requirements.

Designed for DALI-Based Lighting Control

A major advantage of the BBT Lightech system is its compatibility with DALI (Digital Addressable Lighting Interface) control systems.

Technical Characteristics (from system design):

• Voltage range: 9.5 V – 22.5 V (typical 16 V)
• System current: Maximum 250 mA
• Data transfer rate: 1200 Baud
• Maximum conductor length:
  Up to 300 meters with 1.5 mm² conductor

  Based on maximum allowable voltage drop of 2 V
• No special shielding required
• Standard conductors can be used (no twisted pairs needed)

This makes BBT Lightech easy to integrate into standard electrical installations without specialized cabling.

Integrated Power and Control in One Casing

A practical advantage of the BBT Lightech system is that mains power and DALI control wiring can run within the same casing. For the DALI circuit, only two standard wires are required.

This simplifies:

• Installation planning
• Cable routing
• Maintenance access

It also keeps ceilings and service areas clean and organized—an important factor in retail and commercial interiors.

Advantages of the BBT Lightech Lighting Busbar

The system is engineered not only for electrical performance, but also for mechanical and installation efficiency.

Key advantages include:

• High mechanical resistance for long-term durability
• Reduced system weight, easing installation
• Corrosion resistance, suitable for commercial environments
• Fast and simple installation, no special tools required
• Flexible plug-in positioning – outlets can be opened, moved, and closed without extra accessories

This makes the system ideal for spaces where lighting layouts change frequently.

Typical Applications

BBT Lightech lighting busbar systems are widely used in:

• Retail stores and shopping malls
• Showrooms and exhibition spaces
• Supermarkets and commercial outlets
• Offices and business interiors
• Hospitality and public buildings

Anywhere lighting needs to be adaptable without rewiring, the system performs effectively.

Installation & Technical Support in Bangladesh

Although BBT Lightech is designed for ease of installation, correct mounting and configuration are essential for safe and reliable operation.

Edison Power provides:

• Lighting system assessment
• BBT Lightech system selection
• Professional installation
• Technical support for modifications and expansion

If you are looking for flexible long operational lighting systems, Edison Power provides you the best system that works smoothly under real operating conditions.

Frequently Asked Questions (FAQs)

Q. Which standard does the BBT Lightech system meet?

A: BBT lightech system meets with the IEC 61439-6 standard to ensure safety and performance.

Q. Is BBT Lightech compatible with DALI lighting control?

A: Yes. The system supports DALI communication with standard wiring and without special shielding.

Q. Can lighting fixtures be repositioned easily?

A: Yes. Plug-in outlets can be opened, moved, and closed without additional accessories.

Q. Is special cabling required for the control system?

A: No. The DALI system uses standard wiring and can be installed alongside the mains supply in the same casing.

Final Note

The BBT Lightech lighting busbar system combines low-power distribution, intelligent control, and mechanical flexibility in a single solution—making it ideal for modern commercial lighting environments.
