Medium power busbar from 160A to 800A

The Distritech busbar enclosure is made by extruded profiles of aluminium alloy (AW6060-T5 at 99,5%) that gives to the product good mechanic resistance and  reduce its weight. Busbars enclosure, is completely closed and without ventilation in order to protect and prevent from internal mechanical damages, derived from external elements (dust, sand and debris)

These elements are also protected from corrosion and external agents with protection degree IP55 for installation in inner spaces.

DKC distribution busbars follow security standards about pollution degree, in

Particular

Pollution Degree 3: conductive pollution or dry nonconductive pollution that becomes conductive due to condensation occurs. To be found in industrial environment or construction sites (harsh environments).

The external case, in raw aluminium, can be painted with dust technology, finished with Powder Coating 80-100 microns on the customer’s request

ADVANTAGE

• Reduced weight and small size

• Junction with monoblock system

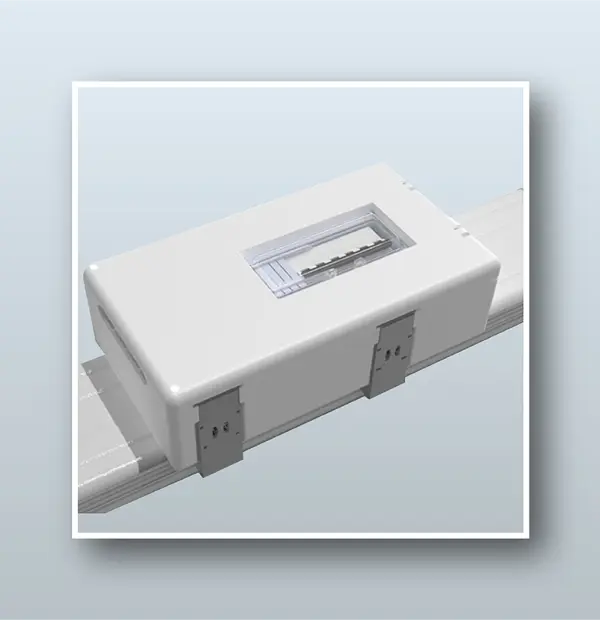

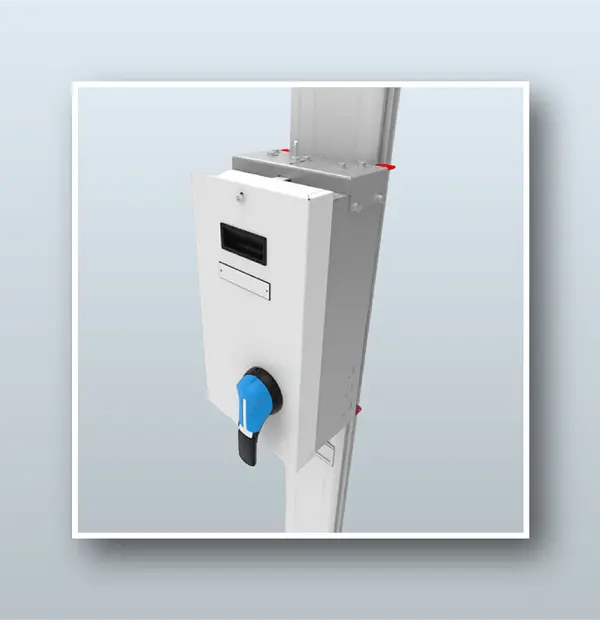

• Variable number of tap-off sockets on both sides depending on projects

• Automatic closing of the socket when removing tap-off boxes

• Availability of tap-off boxes with special dimensions according to requirements

• No derating in any installation direction
